Basic Information
Place of Origin: | Qingdao, China |
Brand Name: | TSKY |
Certification: | SGS, ISO, BV, CE |
Model Number: | ST/S3550 |
Minimum Order Quantity: | 100m |
Price: | Negotiation |
Packaging Details: | Export standard container: 20GP or 40GP, 40HC |
Delivery Time: | 7-15 working days after confirmed order |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 10000m per day |
Detail Information:
Name: | ST/S3550 Fire Resistant Steel Cord Conveyor Belt Fire Retardant Conveyor Belt | Max. Diameter Of Steel Cord: | 8.6mm |
Top Rubber Cover Thickness: | 8.0mm | Bottom Rubber Cover Thickness: | 8.0mm |
Belt Width: | 800mm-2200mm | No. Of Steel Cord: | 50-141 |
Warranty: | 12 Months | ||
High Light: | 2200mm Steel Cord Conveyor Belt, 8.6mm Steel Cord Conveyor Belt, 2200mm Fire Retardant Conveyor Belt | ||
Product Description:

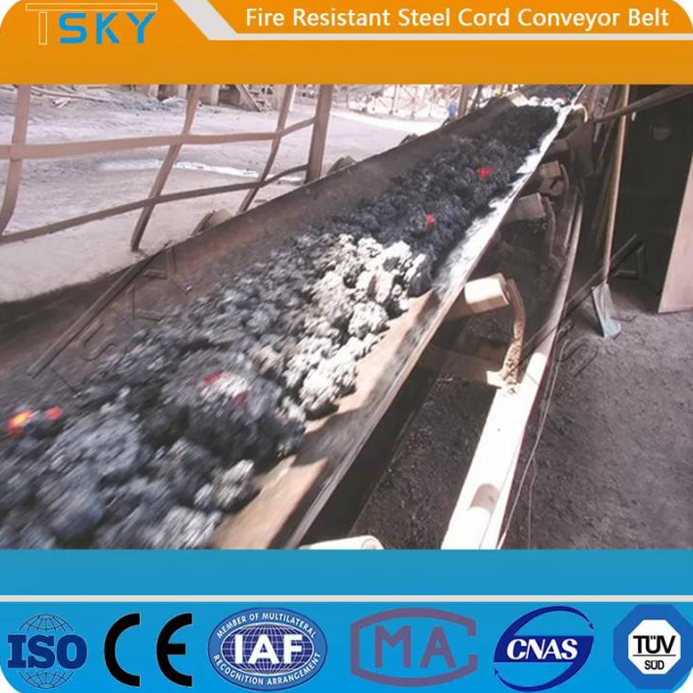

ST/S3550 Fire Resistant Steel Cord Conveyor Belt Fire Retardant Conveyor Belt
Features of ST/S3550 Fire Resistant Steel Cord Conveyor Belt Fire Retardant Conveyor Belt
Leveraging the skills of our qualified team of professionals, we are instrumental in offering a wide range of Conveyor Rubber Belt.
The ST/S3550 fire resistant steel cord conveyor belt is also called ST/S3550 fire retardant steel cord conveyor belt.
The ST/S3550 fire resistant steel cord conveyor belt fire retardant conveyor belt uses galvanize steel cord with high strength and low elongation. The top rubber cover and bottom rubber cover are made of high quality rubber material with fire resistant (fire retardant) & anti-static.
Under constant tension, the ST/S3550 fire resistant steel cord conveyor belt fire retardant conveyor belt can be used to transport materials in the fire resistant (fire-retardant) and static electricity-conducting environment of coal mines by pasting and vulcanizing.
The ST/S3550 fire resistant steel cord conveyor belt fire retardant conveyor belt is suitable for use in underground mines.
The ST/S3550 fire resistant steel cord conveyor belt fire retardant conveyor belt is fire-resistant (fire-retardant), anti-static, high tensile strength, long service life, good trough formation and good flexibility resistance.
Therefore, the ST/S3550 fire resistant steel cord conveyor belt fire retardant conveyor belt is suitable for long-distance, large-span, large conveying capacity and high speed transportation project.
Technical Parameter List of ST/S3550 Fire Resistant Steel Cord Conveyor Belt Fire Retardant Conveyor Belt
(Execution Standard: MT668-2008)
Model | ST/S630 | ST/S800 | ST/S1000 | ST/S1250 | ST/S1600 | ST/S2000 | ST/S2500 | ST/S2800 | ST/S3150 | ST/S3550 |
Max. Diameter of Steel Cord (mm) | 3.0 | 3.5 | 4.0 | 4.5 | 5.0 | 6.0 | 7.2 | 7.5 | 8.1 | 8.6 |
Top Rubber Cover Thickness (mm) | 5.0 | 5.0 | 6.0 | 6.0 | 6.0 | 8.0 | 8.0 | 8.0 | 8.0 | 8.0 |
Bottom Rubber Cover Thickness (mm) | 5.0 | 5.0 | 6.0 | 6.0 | 6.0 | 8.0 | 8.0 | 8.0 | 8.0 | 8.0 |
Belt Width (mm) | No. Of Steel Cord | |||||||||
800 | 75 | 75 | 63 | 63 | 63 | 63 | 50 | 50 | 50 | 50 |
1000 | 95 | 95 | 79 | 79 | 79 | 79 | 64 | 64 | 64 | 64 |
1200 | 113 | 113 | 94 | 94 | 94 | 94 | 76 | 76 | 76 | 77 |
1400 | 133 | 133 | 111 | 111 | 111 | 111 | 89 | 89 | 89 | 90 |
1600 | 151 | 151 | 126 | 126 | 126 | 126 | 101 | 101 | 101 | 10-4 |
1800 | - | 171 | 143 | 143 | 143 | 143 | 114 | 114 | 114 | 114 |
2000 | - | - | 159 | 159 | 159 | 159 | 128 | 128 | 128 | 128 |
2200 | - | - | - | - | - | 176 | 141 | 141 | 141 | 141 |
