Basic Information
Place of Origin: | Qingdao, China |
Brand Name: | TSKY |
Certification: | SGS, ISO, BV, CE |
Model Number: | HZS35 |
Minimum Order Quantity: | 1 set |
Price: | Negotiation |
Packaging Details: | Export standard container: 20GP or 40GP, 40HC |
Delivery Time: | 7-15 working days after confirmed order |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 20 sets per month |
Detail Information:
Name: | HZS35 Mobile Concrete Batching Plant Potable Mixing Plant | Theoretical Productivity: | 35m³/h |
Mixer Model: | MS750 | Mixing Motor Power: | 30Kw |
Feeding Mode: | Skip Hoist Feeding System | Cycling Period: | 72s |
Max. Aggregate Size: | 80mm | Aggregate Bin Capacity: | 3*6m³ |
Discharge Height: | 3.8m/4.2m | Aggregate Weighing Precision: | ±2% |
Cement Weighing Precision: | ±1% | Fly Ash Weighing Precision: | ±1% |
Water Weighing Precision: | ±1% | Additive Weighing Precision: | ±1% |
Bolted Cement Silo: | As Per Customer's Demand | Power Voltage/Frequency: | AC380V / 50HZ |
Warranty: | 12 Months | ||
High Light: | HZS35 Mobile Concrete Batching Plant, 35m³ Mobile Concrete Batching Plant, HZS35 mini mobile batching plant | ||
Product Description:

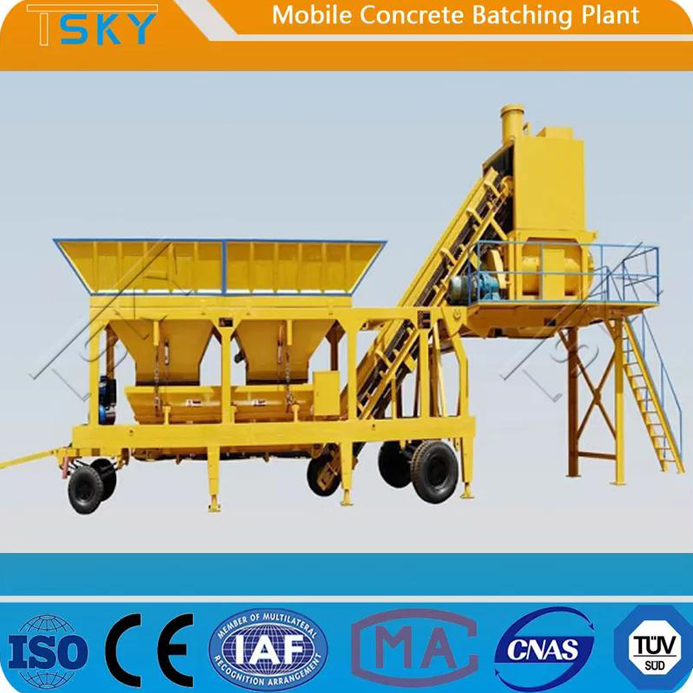

HZS35 Mobile Concrete Batching Plant Potable Mixing Plant
Features Of HZS35 Mobile Concrete Batching Plant Potable Mixing Plant
Mobile concrete power plant can be moved anywhere. It moves pretty fast. It has an advanced automation system. Very easy to use. There is no need to use concrete during installation.
Compact Module Structure
The HZS35 mobile concrete batching plant potable mixing plant is designed in a compact module structure, so the batching plant can be easily moved. The batching machine, concrete mixer, screw conveyor and cement silos are independent sections. The disassembly and installation is fast and the transport is convenient. Different arrangement is available for different requirement.
Excellent Mixing Performance
The HZS35 mobile concrete batching plant potable mixing plant is equipped with MS twin-shaft concrete mixer, which has excellent performance, short mixing time, good quality mixing result and high production efficiency.
Accurate Weighing
The weighing and control unit of aggregate, power material and liquid material adopt the famous brand, with computer control which can ensure the accurate weighing and stable working performance.
Simple Operation
The HZS35 mobile concrete batching plant potable mixing plant adopts industrial computer of PLC automatic control, also with manual operation for option. Dynamic panel display can easily monitor the running situation of each part. The system can save the production data and print the reports.
Convenient For Maintenance
The HZS35 mobile concrete batching plant potable mixing plant is equipped with humanized large maintenance platform and stairs, which are easy for repair and maintenance. Reserved water outlet on the concrete mixer is convenient for mixer washing. The entire packing ensure the normal daily production and maintenance without weather influence.
Technical Parameter List of HZS35 mobile concrete batching plant potable mixing plant
Model | HZS25 | HZS35 | HZS50 | HZS75 | HZS100 |
Theoretical Productivity | 25m³/h | 35m³/h | 50m³/h | 75m³/h | 100m³/h |
Mixer Model | MS500 | MS750 | MS1000 | MS1500 | MS2000 |
Mixing Motor Power | 18.5Kw | 30Kw | 37Kw | 55Kw | 2*37Kw |
Feeding Mode | Skip Hoist Feeding System | ||||
Cycling Period | 72s | 72s | 72s | 72s | 72s |
Max. Grain Size | 80mm | 80mm | 80mm | 80mm | 80mm |
Aggregate Bin Capacity | 2*6m³ | 3*6m³ | 3*12m³ | 3*12m³ | 4*20m³ |
Discharge Height | 3.8/4.2m | 3.8/4.2m | 3.8/4.2m | 3.8/4.2m | 3.8/4.2m |
Aggregate Weighing Precision | ±2% | ±2% | ±2% | ±2% | ±2% |
Cement Weighing Precision | ±1% | ±1% | ±1% | ±1% | ±1% |
Fly Ash Weighing Precision | ±1% | ±1% | ±1% | ±1% | ±1% |
Water Weighing Precision | ±1% | ±1% | ±1% | ±1% | ±1% |
Additive Weighing Precision | ±1% | ±1% | ±1% | ±1% | ±1% |
