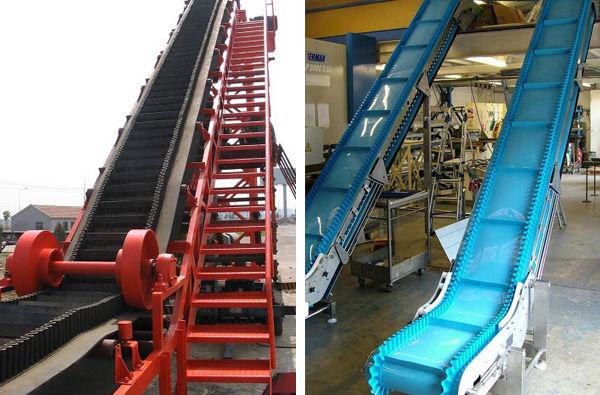

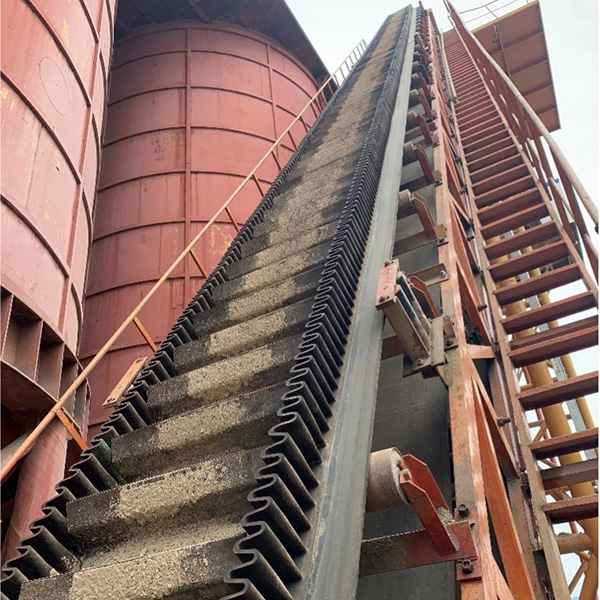

The large angle belt conveyor has the advantages of simple structure, reliable operation, convenient maintenance, etc. as the universal belt conveyor, and has the characteristics of large angle conveying, compact structure, and less land occupation. Therefore, it is an ideal equipment for conveying materials with large inclination and vertical lifting.
(mm)
Technical parameters of large angle belt conveyors | |||||
Belt Width(mm) | Rib Height(mm) | Belt Speed(m/s) | Inclinatin agle(°) | Transport Capacity(m³/h) | Power(N/Kw) |
300 | 40 | 0.8-2.0 |
30-90 | 18 | 1.5-18.5 |
60 | 24 | ||||
80 | 40 | ||||
400 | 60 | 0.8-2.0 | 34 | 1.5-18.5 | |
80 | 60 | ||||
100 | 80 | ||||
500 | 80 | 0.8-2.0 | 84 | 1.5-18.5 | |
100 | 98 | ||||
120 | 112 | ||||
650 | 100 | 0.8-2.0 | 140 | 1.5-22 | |
120 | 156 | ||||
160 | 186 | ||||
800 | 120 | 0.8-2.5 | 186 | 2.2-45 | |
160 | 318 | ||||
200 | 360 | ||||
1000 | 160 | 1.0-2.5 | 428 | 4.5-75 | |
200 | 483 | ||||
240 | 683 | ||||
1200 | 160 | 1.0-3.15 | 535 | 5.5-110 | |
200 | 765 | ||||
240 | 1077 | ||||
300 | 1358 | ||||
1400 | 200 | 1.0-3.15 | 920 | 5.5-160 | |
240 | 1298 | ||||
300 | 1657 | ||||
400 | 2381 | ||||
